Vivor / Varioso

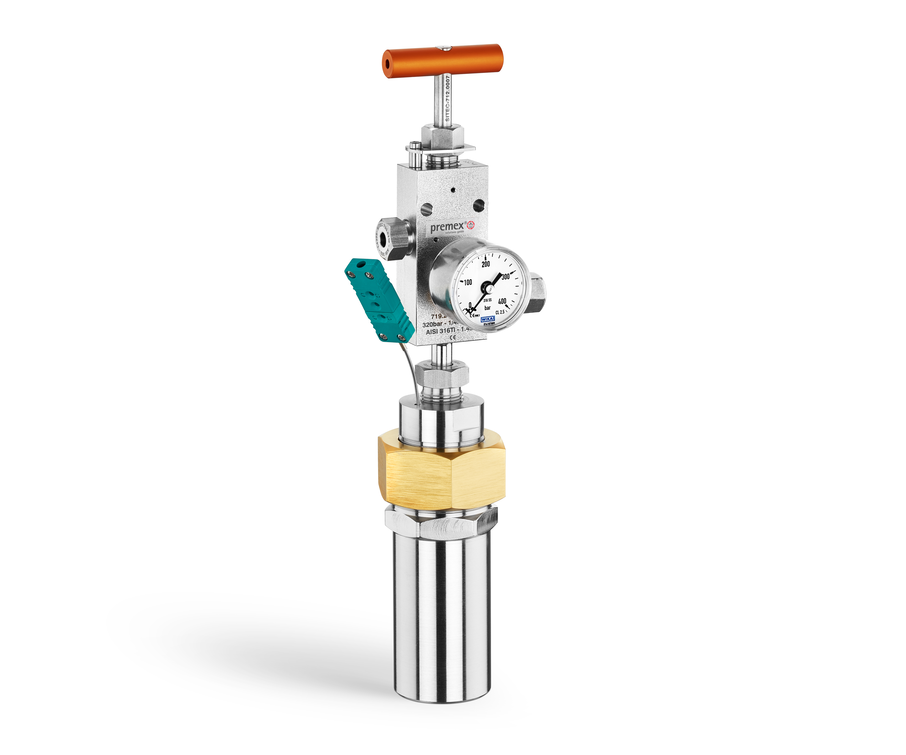

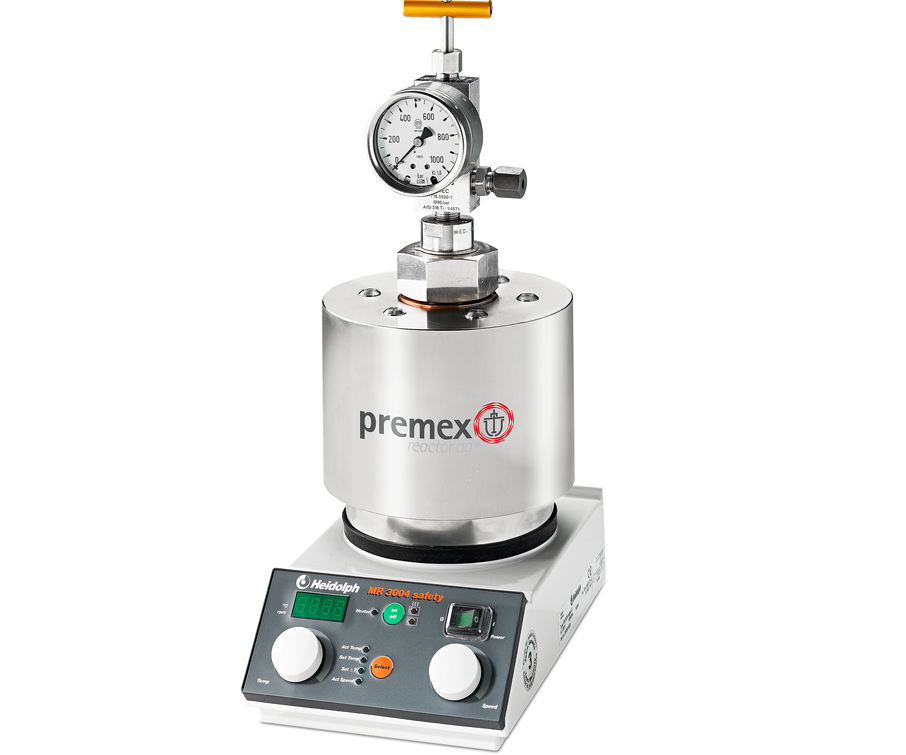

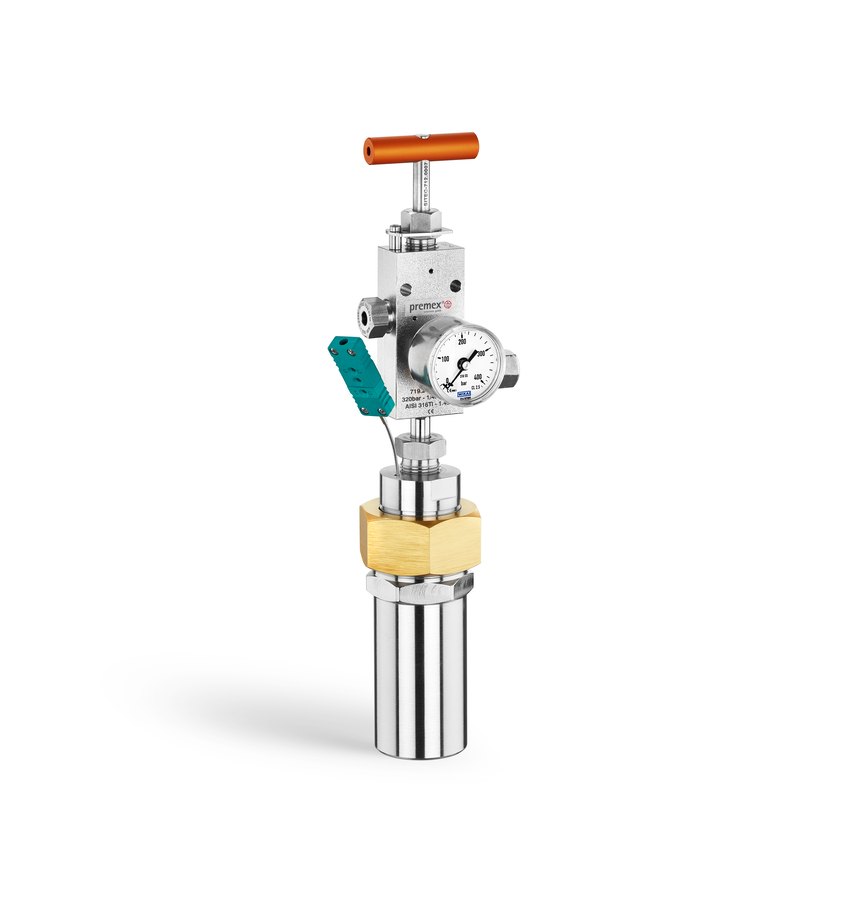

The Premex Vivor and Varioso series are compact, small-volume high-pressure reactors designed for flexible laboratory use. Both models are available in 60 ml and 100 ml formats and can be configured with different materials to suit the required pressure, temperature and chemical compatibility. The Vivor is a compact standalone autoclave for small-scale pressure reactions, while the Varioso combines the Vivor reactor with a matched magnetic heating/stirring plate and coordinated cooling system for a more complete benchtop setup.
Key Specifications
- Nominal reactor volume: 60 ml or 100 ml
- Working volume: 20 – 40 ml or 40 – 60 ml, depending on reactor size
- Working pressure: Up to 200, 280 or 480 bar, depending on material selection
- Working temperature: Up to 200°C, 250°C or 300°C, depending on material selection
- Heating options: Hotplate or thermostatic oil bath; Varioso available with integrated magnetic heating/stirring plate and cooling system
- Stirring method: Magnetic stirring
- Material options: Stainless steel, Hastelloy, titanium and other materials on request
Features
- Compact autoclave design for small-scale high-pressure reactions
- Double sealing system with an O-ring and metal-to-metal medium seal
- Flexible lid configuration with either a central fitting or individual lid connections, depending on the selected version
- Standard process and safety fittings available for gas supply, pressure indication, pressure relief and temperature measurement
- Typical accessories include sampling tube, shut-off or metering valve, pressure gauge, bursting disc holder and temperature sensor connection
- Available as the standalone Vivor reactor or as the Varioso benchtop system with coordinated heating, stirring and cooling
