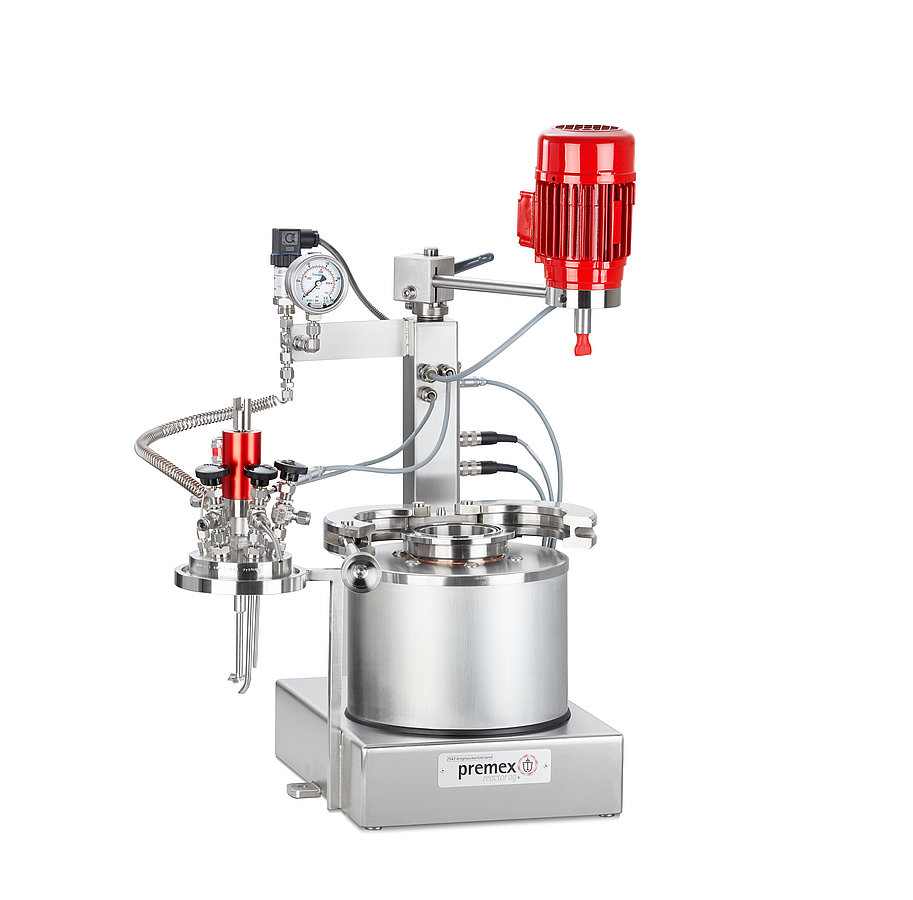

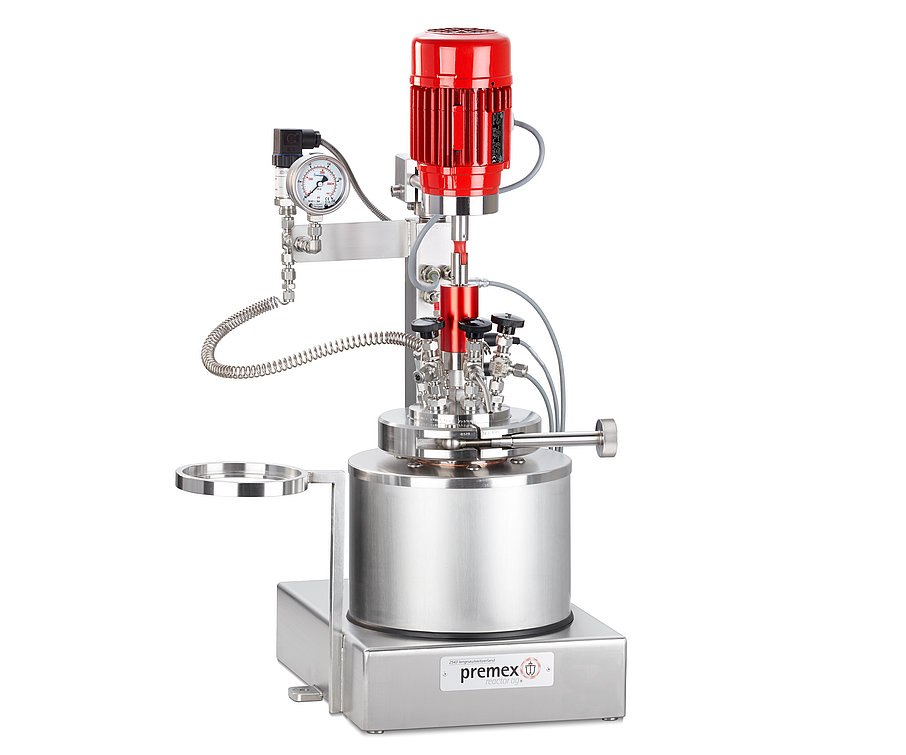

Twister
The Premex Twister is a flexible high-pressure batch reactor designed for laboratory and small-scale pilot applications. With reactor volumes from 60 ml to 1000 ml, it is suitable for a wide range of pressure reactions including hydrogenation, polymerisation and catalyst research. The Twister combines magnetic stirring, practical vessel handling and integrated pressure monitoring in a compact system for reliable and efficient high-pressure operation.
Key Specifications
- Nominal reactor volume: 60 ml to 1000 ml
- Working pressure: Up to 200 bar
- Working temperature: Up to 200°C
- Heating options: Electric heating or double-jacket heating for heat transfer oil
- Stirring method: Magnetic stirrer head from the Premex minipower series, flexibly coupled to the motor
- Stirring speed: Up to 1,300 rpm with ball bearing or up to 1,200 rpm with plain bearing
- Drive options: Three-phase motor, 120 W or 180 W depending on reactor size, or Heidolph drive
- Material options: WNr. 1.4435 or WNr. 2.4602
Features
- Versatile single batch reactor for hydrogenation, polymerisation, catalyst research and small-scale pilot work
- Jaw-lock quick closure for convenient opening and closing up to 200 bar
- Removable reaction vessel for easier charging, emptying and cleaning
- Magnetic stirrer drive for leak-tight stirring under pressure
- Pressure station on chassis with manometer and pressure transducer
- Flexible spring-tube connections from the autoclave lid to fixed connections for improved handling
- Standard fittings and accessories available for gas supply, sampling, pressure indication, pressure relief and temperature measurement, including needle valves, dip tube, pressure gauge, bursting disc holder and Pt100 or Type K temperature sensor
- Swivel device allows the stirrer motor to be disconnected and moved aside for easier vessel access

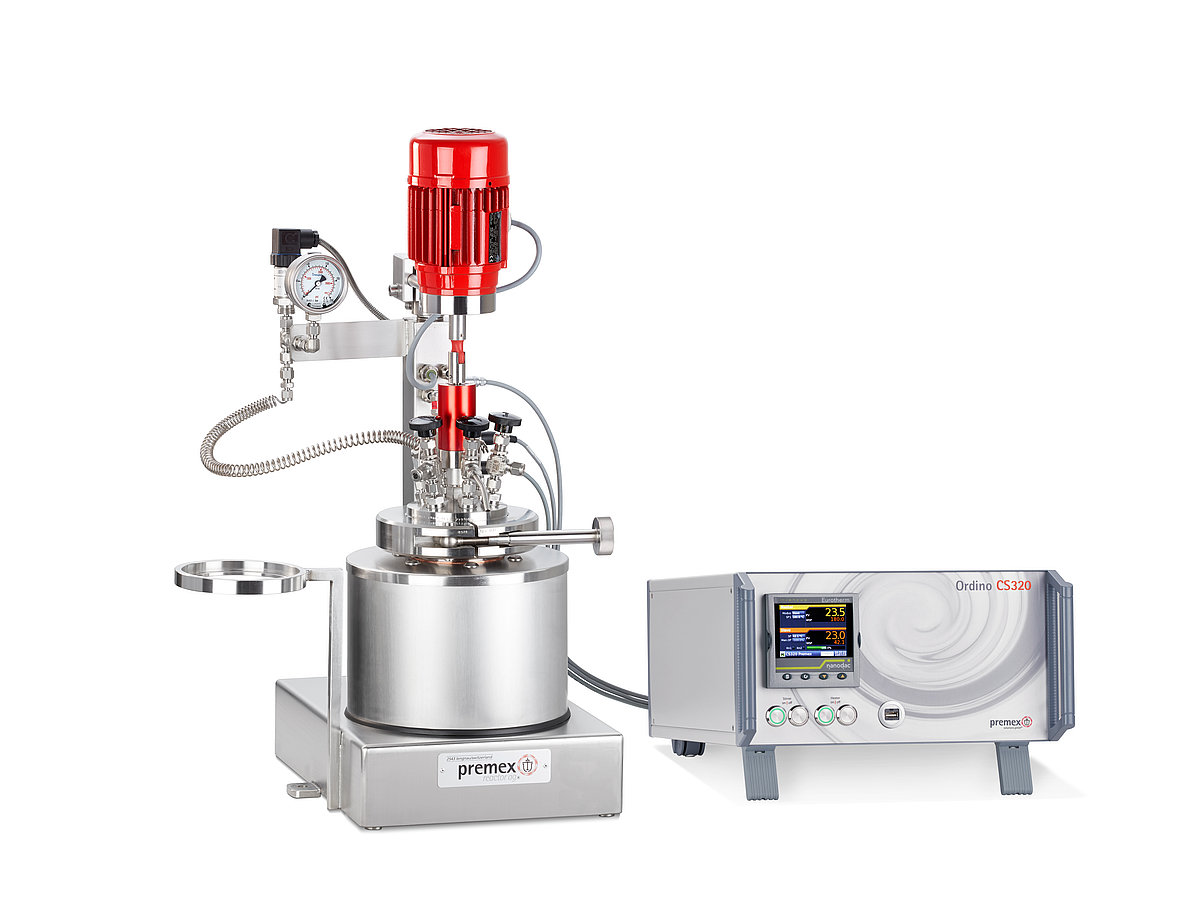

- Prepared electrical connections for integration with compatible Premex control units
