Avalon

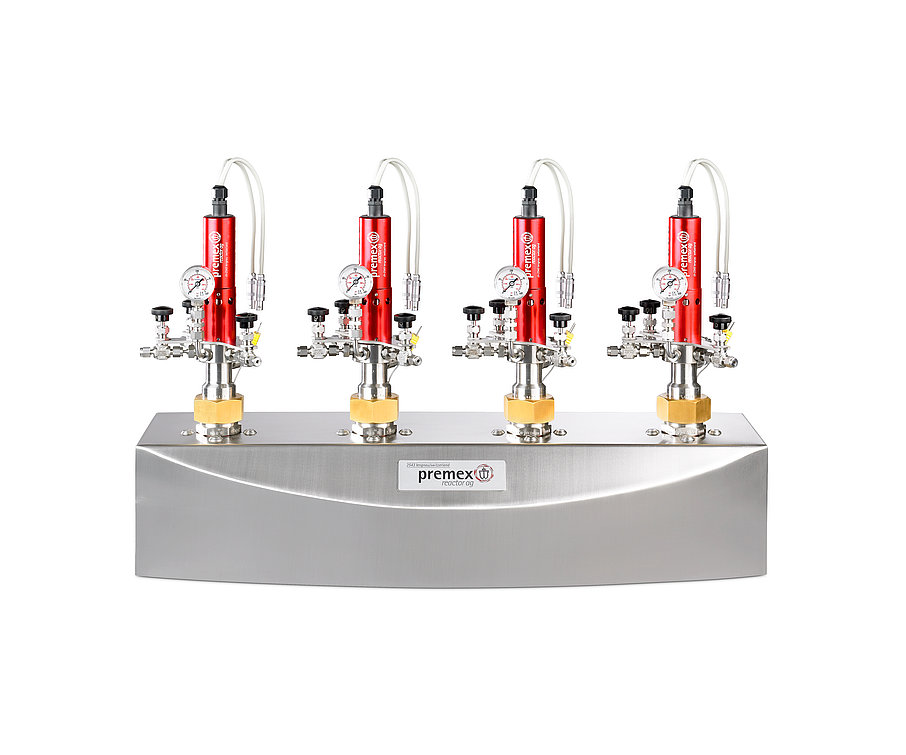

The Premex Avalon is a compact multi-reactor high-pressure system designed for parallel small-scale batch reactions. Based on Premex’s A-line autoclave platform, it combines four independently operated reactor units as standard, with options for eight or more reactors on request. With independent heating, cooling and control of each reactor, Avalon is well suited for screening, method development and comparative high-pressure studies.
Key Specifications
- Nominal reactor volume: 4 × 60 ml or 4 × 100 ml
- Working volume: 20 – 40 ml or 40 – 60 ml, depending on reactor size
- Working pressure: Up to 200, 280 or 480 bar, depending on material selection
- Working temperature: Up to 200°C, 250°C or 300°C, depending on material selection
- Heating options: Fluid/oil heating or electric heating

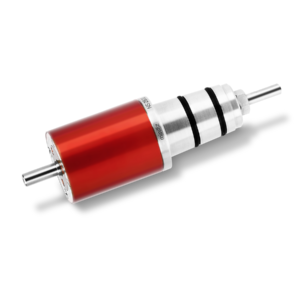

- Stirring method: Integrated magnetic stirrer drive with micromotor
- Stirring speed: Up to 1,300 rpm with ball bearing or up to 1,200 rpm with plain bearing
- Material options: Stainless steel, Hastelloy, titanium and other materials on request
Features
- Multi-reactor system for four parallel high-pressure batch reactions as standard
- Options for eight or more autoclaves operated in parallel on request
- Independent heating, cooling and control of individual reactor units
- Fully integrated magnetic stirrer drive, micromotor, gas connections and safety features
- Double sealing system with an O-ring and metal-to-metal medium seal
- Standard fittings and accessories available for gas supply, sampling, pressure indication, pressure relief and temperature measurement, including regulating shut-off valves, sampling tube, pressure gauge, bursting disc holder and thermocouple immersion tube
- Wide range of impeller options available, including gas supply stirrer, anchor stirrer, diagonal blade stirrer, disc stirrer and other designs to suit different mixing requirements
- Removable output shaft for easier cleaning and bearing replacement
- Plug-in connections for heating and thermocouple positioned at the rear of the autoclave chassis
